All-access availability for non-stop production
Dedicated in elevating performance standards and fully process reliability, Stirtec machines within the G-series are designated to achieve highest welding speeds on application within the automotive and other industries. The gantry system combines robust and stiff machine design with fast acceleration travel speeds, reducing production costs to a minimum. The manufacturing of large full-EV battery trays and floor panel systems require short FSW welding and part handling times to fulfill the desired quantities. With welding speeds up to 5000mm/min, Stirtec gantry systems are employed by leading OEMs (Original Equipment Manufacturers) and their suppliers for high-volume production in the automotive industry. The special developed FSW spindle system executed the welding process force controlled. Including the inline process monitoring software STIRlytics®, process forces and real-life data collecting are combined into a quality report, which ensures fully traceability throughout the FSW welding process. Seamlessly integrated into the desired automation system, Stirtec machines within the G-series are setting new milestones in serial production.
FSW force control system
STIRlytics process monitoring software for data monitoring
Simultaneous part handling to the welding cycle
Achievement of FSW welding speeds up to 5000mm/min

Overview of the gantry FSW series

G-FSWC2318

G-FSWC2318
  • Application for welding: large battery tray for full EV and PHEV vehicle components
  • FSW machinery with exceptional rigidity for part loading from front, back and top side of the machine
Download DatasheetG-FSWC2318

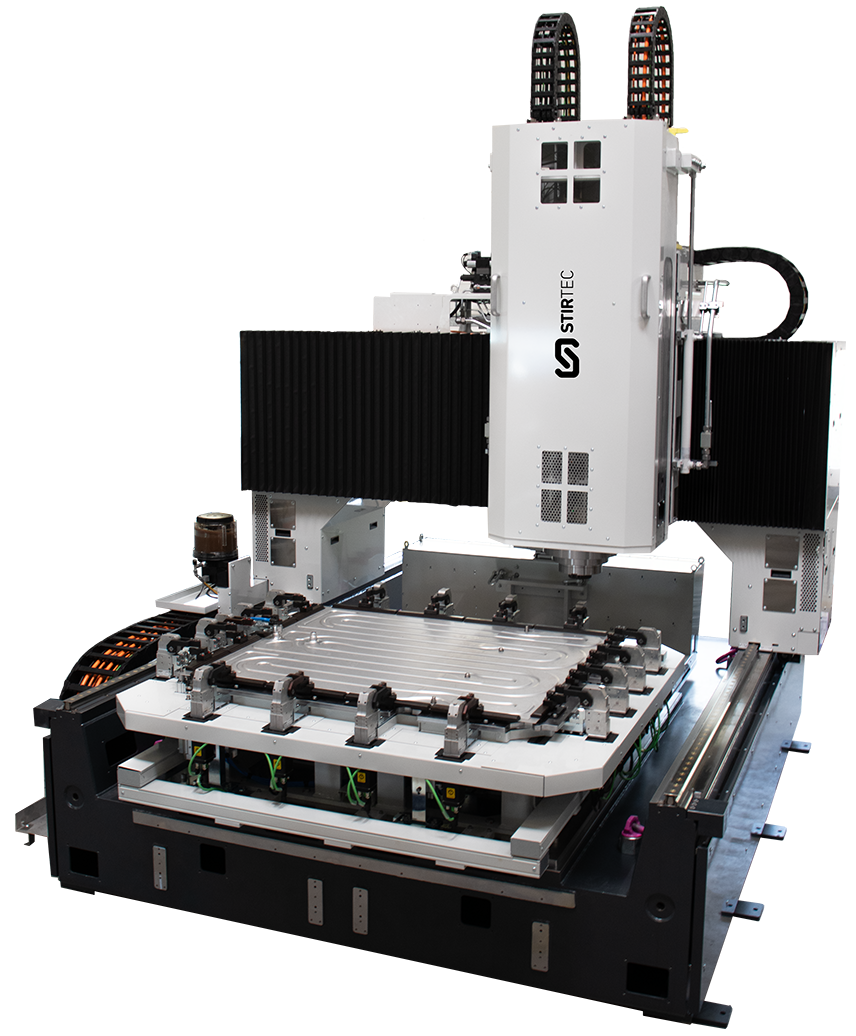

The Stirtec G-FSWC2318 provides state-of the art Friction Stir Welding technology with seamlessly merging power and precision in a single, versatile production unit. The robust and stiff machine design allows the achievement of highest welding speeds under following the welding path with stabile accuracy. Applications can be fully-loaded from front for welding and transferred outside of the machinery due to rear side opening. With the extension of the tool magazine up to 120 sockets, the G-FSWC2318 is the perfect solution on ever-changing requirements demanding individual and flexible production. The machine is predominately used for automated production, demands for manual loading and unloading are also given by the full enclosure machine system.

Machine characteristics of Stirtec G-FSWC2318

  • application size up to L 2000mm x W 1500mm
  • use of Sinumerik 840D sl machine control system
  • STIRlytics process software for 100% traceability
  • FSW force measuring system in X-, Y- and Z-direction
  • highest process stability and accuracy due to rigid machine frame
  • suitable for all aluminum alloys and die casting components
  • automatic tool change system for 50 tool pockets (up to 120 sockets)
  • FSW spindle for welding forces up to 40kN, torque: 5.000rpm
  • Heidenhain absolute scales leads to direct machine feedback
  • achievement on highest FSW welding speeds (up to 5.000mm/min)
  • upgradable milling functionality in a single machining center
  • full protection and CE-conformity​
